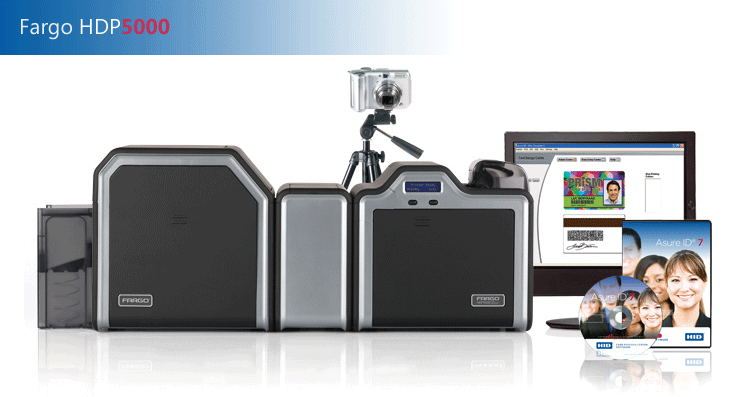

Fargo HDP5000 ID Card Printer (Single-Sided or dual-sided)

Print vibrant, high definition
cards for every application

Superior print quality, higher reliability and durability, greater security - your photo ID cards will have all these qualities when you print and encode them with the affordable and versatile HDP5000 ID card printer and encoder.

Untitled-1

Built-in high definition
printing technology

If superior print quality is what you're looking for, even on smart cards with embedded electronics, this printer will deliver sharp photo-like images including detailed text.

Untitled-1

Dual-sided durability
and security simplfied

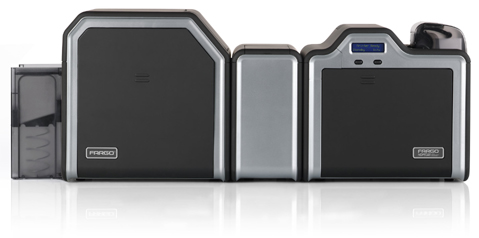

Applying a holographic custom overlaminate design or holographic HDP film to the front or both sides of an ID card improves its durability and security. The HDP5000 laminates both sides of a card simultaneously in one efficient pass, without wasting time turning a card over.

Untitled-1

High capacity input
for quick card printing

Sit back and let the printer do the work for you with more batch printing functionality, designed to hold up to 100 cards at a time with up to 200 card output capacity, saving you time and labor from restocking your hopper.

More Information

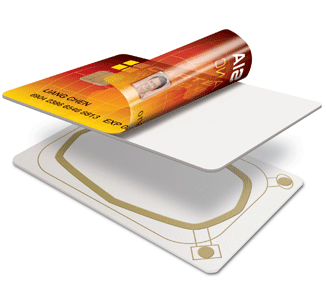

The Fargo HDP5000 is a retransfer id card printer with built-in high definition printing capability which produces a superior print quality on the highest functioning cards. HDP film fuses to the surface of proximity and smart cards, conforming to ridges and indentations formed by embedded electronics.

Superior print quality, higher reliability and durability, greater security – your photo ID cards will have all these qualities when you print and encode them with the affordable and versatile HDP5000.

High Definition Printing™ gives you superior print quality, even on cards with embedded electronics, for a more impressive public image.

The high reliability and durability lowers your total cost of ownership, and affordable pricing makes high definition printing available to practically any business.

Training

Minimal training is required because of its simple design and intuitive operation. Cards, ribbons and over laminates come in cartridges that load quickly and easily.

Warranty

HDP5000 has a reputation for producing high-quality printers and offers a lifetime print head warranty and a 3-year industry on everything else.

Printing

Printing	Single Sided (Dual-Side Upgrade)
Print Type	Dye-Sublimation/Resin Thermal Transfer
Print Area	Over-the-Edge
Resolution	300dpi

Cards

Card Feeding	Automatic
Card Size	ISO CR80
Card Thickness	0.38 – 0.76 mm (15 to 30 mil)
Card Type	PVC, PET, Composite PVC

Capacity

Input Hopper	100 cards
Output Hopper	200 cards

Print Speed

YMC	24 sec per card/150 cards per hour (YMC with transfer)
YMCK	29 sec per card/124 cards per hour (YMCK with transfer)
YMCKK	40 sec per card/90 cards per hour (YMCKK with transfer)
YMCK	35 sec per card/102 cards per hour (See specification sheet)
YMCKK	48 sec per card/75 cards per hour (See specification sheet)

System

Supported Platforms	Microsoft Windows 7/8/10, Mac OS, Linux
Memory	64MB RAM
Control Panel	1 LED Button
Communications	USB, Ethernet (Option)
Supply Voltage	100-240 VAC, 3.3A
Interface	USB 2.0 (high speed) and Ethernet with internal print server
Temperature	18~32 C
Humidity	20~80% non-condensing

Dimensions

Dimension (W × L × H)

See specification sheet

Weight

Kg/Lbs

HDP5000: 16 lbs. / 7.3 kg, HDP5000 + Dual-Sided Module: 22 lbs. / 10 kg, HDP5000 + Single-Sided Lam Module: 28 lbs. / 12.7 kg, HDP5000 + Dual-Sided Module + Dual-Sided Lam Module: 36 lbs. / 16.4 kg
