Fargo HDP8500

HDP8500

The most reliable, high duty performance ID card printer in the industry.

The FARGO® HDP8500 Industrial Card Printer/Encoder is the superior industrial ID printer for extended-run, high throughput credential personalization and issuance.

It's especially suited for the high duty cycle requirements of large government ID card program.

The HDP8500 is loaded with features that allow you to produce IDs reliably and continuously, even in the most demanding environments.

For High Duty Performance - a 400-card input capacity; graphical touch screen user interface; built-in security features like PIN access and resin ribbon data-erase; and an air filtration system.
With High Definition Printing - HID's fifth generation HDP engine produces prints crisp, over-the-edge images on a wide variety of technology cards and card materials.

Encoding Features:

Magnetic stripe encoder - 1, 2 and 3 track.
Smart card contact station
Combined MIFARE® contactless and contact encoder.

Optional Features:

Lamination Module
Additional Encoding Options
Lesar Support Packages

Available Upgrade

The HDP8500LE Industrial Card Laser Engraver

FARGO HDP8500LE 工业卡激光雕刻机-HID Global

Ideal for

Government-to-citizen IDs:
- Driver Licenses
- National IDs
- Border crossing cards
- Voter registration
Service bureau ID production
University student ID/payment cards

Contact us to find out more

Fargo DTC1000Me

Part No	Ribbon Description	Images	Panels	Click To View Product
84818	Fargo 1 Panel	3000 Images	Premium K

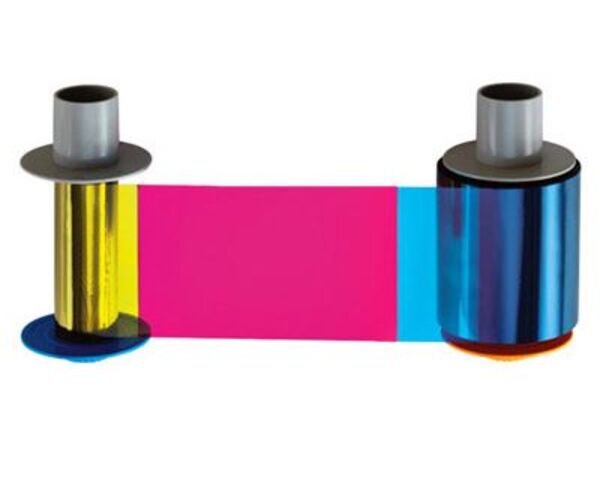

84810	Fargo 3 Panel	750 Images	YMC
84814	Fargo 5 Panel	500 Images	YMCFK

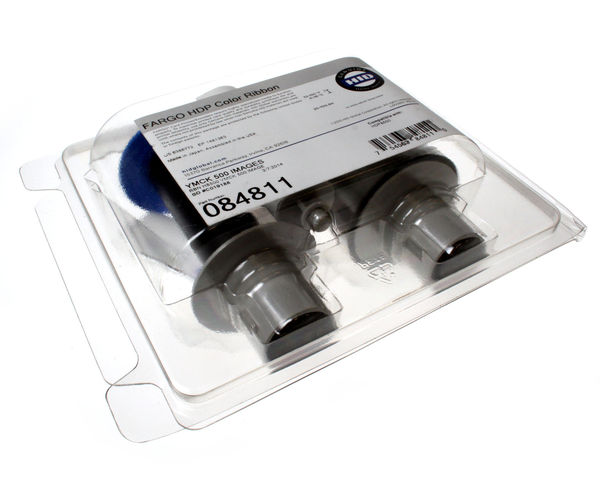

84811	Fargo 4 Panel	500 Image	YMCK
84816	Fargo 4 Half Panel	1000 Image	YMCK
84812	Fargo 5 Panel	500 Image	YMCKK

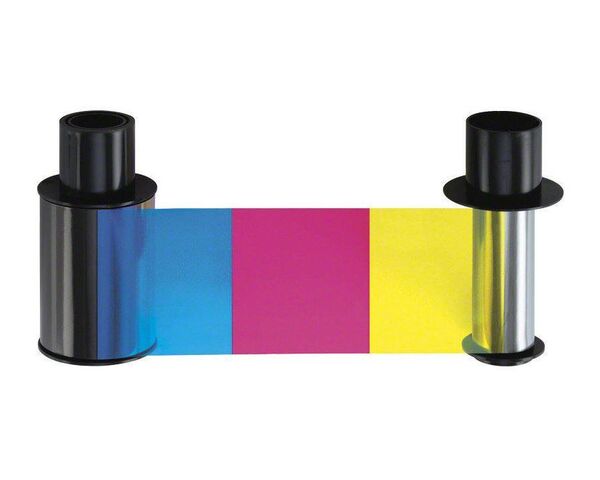

84813	Fargo 5 Panel	500 Image	YMCKH
84815	Fargo 5 Panel	500 Image	YMCKI

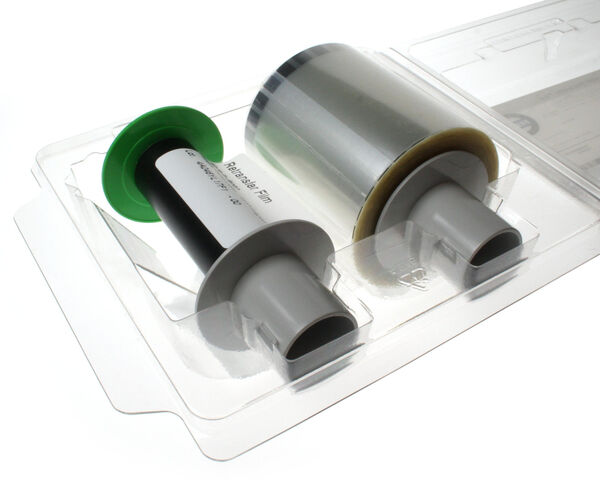

84800	Clear Film	1500 Image	Clear
84803	High Durable Clear Film	1000 Image	Clear
84801	Holographic Film	500 Image	Clear

FargoHDP8500-Setup

Videos

Helpful Tips

HDP8500 Upgrade

HDP8500 Specifications

Print Method: HDP dye-sublimation / resin thermal transfer
Print Platform: Standard, dual-sided printing
Resolution: 300 dpi (11.8 dots/mm)
Colors: Up to 16.7 million/256 shades per pixel
Print Speed (batch mode): Up to 1200 cards per shift/24 seconds per card (YMC with transfer)
Accepted Card Sizes: CR-80
Dual Input Card Hoppers: (2) 200-card hoppers; Total capacity 400 cards
Output Hopper Card Capacity: (1) 200-card hopper
Field-upgradeable Options:
- Laser Engraving
- Card Lamination Module - dual-sided (simultaneous)
- Magnetic stripe encoding
- Smart card encoding (contact/contactless)
- Custom secure holographic HDP Film and overlaminate
- Secure proprietary consumables system
- Andon production status light
- iCLASS® programming platform kit
- ISO Card Flattener
- High Durable HDP Film for enhanced card durability
